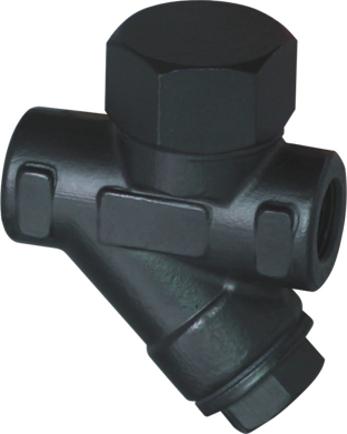

热动力圆盘式蒸汽疏水阀 Thermodynamic disc stam trop产品介绍：圆盘式蒸汽疏水阀是根据热动力学原理，利用蒸汽和凝结水的热动力学不同热性，引起动能和势能动静压变化，使动作件阀片上下压差变化，启动阀片开启和关闭，从而达到阻气排水目的。广泛用于蒸汽主管道，伴热管线、夹套锅及各种小型蒸汽设备。
结构特点：1、本阀结构结实、重量轻、体积小使用压力范围大，不需任何调节。
2、具有空气排放装置，迅速排除初时空气、保证快速启动。
3、可承受过热蒸汽、抗冰冻能力强，安装位置不受限制，均能正常工作。
Introduction:According to the thermodynatic principle,the disc trap drives the change of the power,causing differences between the upper and lower valve discs.The valve disc will be opened and closed accordingly to resist gas and discharge water.This kind of trap enjoys an extensive application in main pipelines,heat accompanying pipelines and small steam equipments.
Structure:1.This trap is featured with solid structure,light weight,small volume and different pressure without any adjustment.
2.Hving gas discharging equipment for rapidly discharging gas to ensure fast start.
3.Excellent abilities to endure steam and to resist frozen.It can be installed in free way.
技术参数表 Technological parameter date
Model
产品型号 |
Nominal diameter
公称通径DN |
Pressure raring
使用压力 MPa |
Max allowable(℃)
最高允许温度 |
External dimensions（mm）外型尺寸 |
|
螺纹、承插焊连接 |
法兰连接 |
|
L |
H1 |
H2 |
L |
H1 |
H2 |
|
BCS19H
BCS69H
BCS49H |
15~20 |
0.01~1.6、2.5、4.0 |
425 |
90 |
55 |
48 |
150 |
55 |
50 |
|
25 |
90 |
55 |
48 |
160 |
55 |
50 |
|
32 |
120 |
68 |
78 |
230 |
68 |
78 |
|
40 |
120 |
70 |
78 |
230 |
75 |
83 |
|
50 |
140 |
80 |
83 |
230 |
80 |
83 |
|
65 |
|
|
|
250 |
90 |
95 |
|
80 |
|
|
|
280 |
140 |
145 |
|
100 |
|
|
|
310 |
150 |
165 |
|
CS19H
CS69H
CS49H
（TD16、32、42） |
15 |
0.01~1.6、3.2、4.2 |
425 |
80 |
47 |
54 |
150 |
47 |
54 |
|
20 |
90 |
52 |
59 |
150 |
52 |
59 |
|
25 |
95 |
59 |
62 |
160 |
59 |
62 |
|
32 |
105 |
70.5 |
89.5 |
210 |
70.5 |
89.5 |
|
40 |
110 |
70.5 |
89.5 |
230 |
70.5 |
89.5 |
|
50 |
120 |
71 |
104 |
230 |
71 |
104 |
|
CS169H
（TD52） |
15~20 |
0.03~5.0 |
425 |
75 |
45 |
52 |
|
|
|
|
25 |
0.03~5.0 |
425 |
90 |
20 |
24 |
|
|
|
|
CS49H
(JIS) |
15 |
5K、10K、16K |
425 |
|
|
|
136 |
60 |
52 |
|
20 |
|
|
|
140 |
60 |
52 |
|
25 |
|
|
|
150 |
62 |
55 |
|
32 |
|
|
|
230 |
94 |
112 |
|
40 |
|
|
|
260 |
94 |
112 |
|
50 |
|
|
|
260 |
94 |
112 |
|
80 |
|
|
|
310 |
106 |
131 | |
